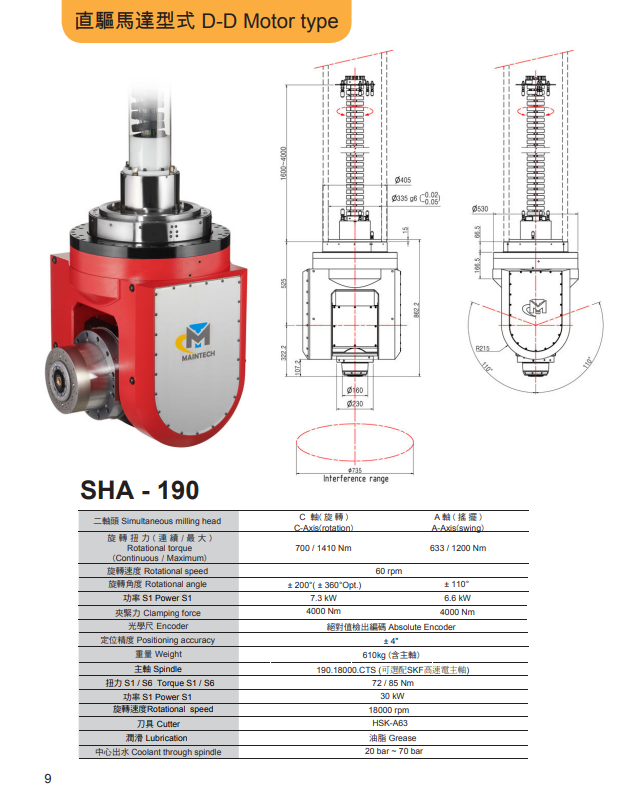

SHA DD motor dual-shaft head
Two-Axis Head - DD Motor
Feature
- High torque
- High precision
- Zero backlash
- Simple structure
- High reliability.
Specification
| Simultaneous milling head | C-Axis(rotation) | A-Axis(swing) |
|---|---|---|
| Rotational Torque | 700 / 1410 Nm | 633 / 1200 Nm |
| Rotational Speed | 60 rpm | 60 rpm |
| Rotational Angle | ± 200°( ± 360°Opt.) | ± 110° |
| Power S1 | 7.3 kW | 6.6 kW |
| Clamping Force | 4000 Nm | 4000 Nm |
| Encoder | Absolute Encoder | Absolute Encoder |
| Positioning Accuracy | ± 4" | ± 4" |
| Weight | 610kg(including spindle) | 610kg(including spindle) |
| Spindle | 190.18000.CTS | 190.18000.CTS |
| Torque S1 / S6 | 72 / 85 Nm | 72 / 85 Nm |
| Power S1 | 30 kW | 30 kW |
| Rotational Speed | 18000 rpm | 18000 rpm |
| Cutter | HSK-A63 | HSK-A63 |
| Lubrication | Grease | Grease |
| Coolant Through Spindle | 20 bar ~ 70 bar | 20 bar ~ 70 bar |
